The CVE program aims to catalogue ‘Common Vulnerabilities and Exposures’ of hardware and software systems. One of our term projects for Offensive Security was to find a CVE without a proof of concept, and with a high CVSS (Common Vulnerability Scoring System) score, and develop an exploit that takes advantage of the vulnerability. When my group and I were first looking for CVEs, we noticed a substantial group of CVEs for the same platform: iTop.

iTOP CVEs

iTop is an open-source software for IT service management, configuration management databases (CMDBs), and other IT processes. IT admins can log on to iTop’s dashboard to manage incidents, users, and configurations. Interestingly, among iTop’s clients is the Council of Europe. We decided that, because there were seemingly so many security vulnerabilities for iTop, that this would be a good route for our project. The CVEs were CVE-2024-52002, CVE-2024-52000, CVE-2024-31998, CVE-2024-31448. All of these were reported around November 4 to November 8 of 2024, so it didn’t seem like a stretch to assume that they were related. The CVE details are as follows, and all apply to versions below iTop v3.2.0.

• CVE-2024-52002: Several URL endpoints are subject to a CSRF vulnerability, including the creation and modification of users, people, and the viewing of sensitive information like passwords.
• CVE-2024-52000: Several URL endpoints are subject to an XSS vulnerability.
• CVE-2024-31998: A CSRF can be performed on CSV import simulation.
• CVE-2024-31448: An XSS Attack can be performed by injecting malicious JavaScript into CSV content before it is simulated.

Understanding iTop’s CSV Import Wizard

I decided to focus on the latter two CVEs because they seemed related, and both involved CSV imports. In order to import a CSV (which may contain new company data, new configs, and importantly, new iTop users), we must go through the iTop CSV Import Wizard. The following are the steps we must take in order to fully import a CSV:

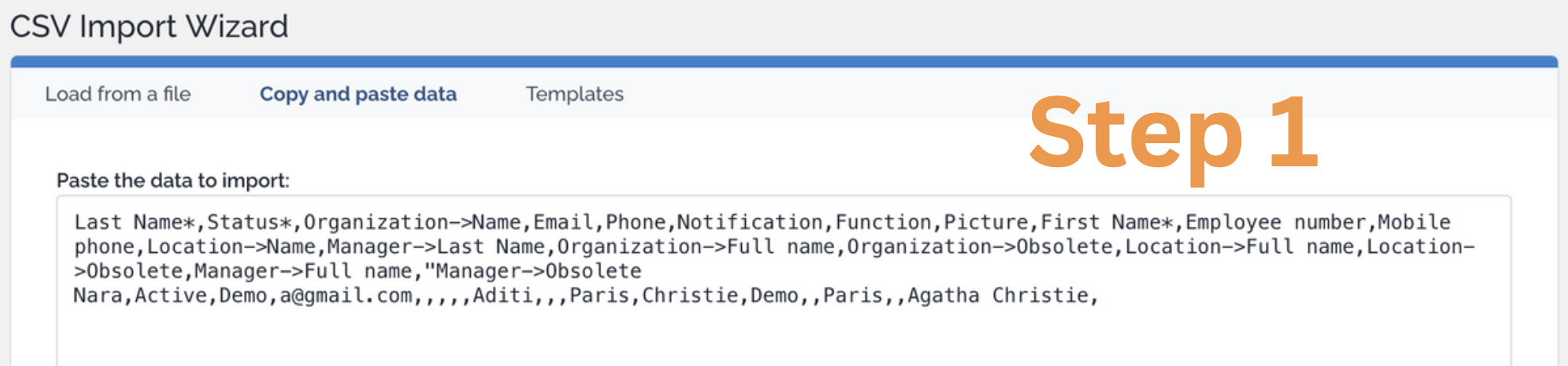

1. Upload a CSV by copy-and-pasting it or loading from a file.

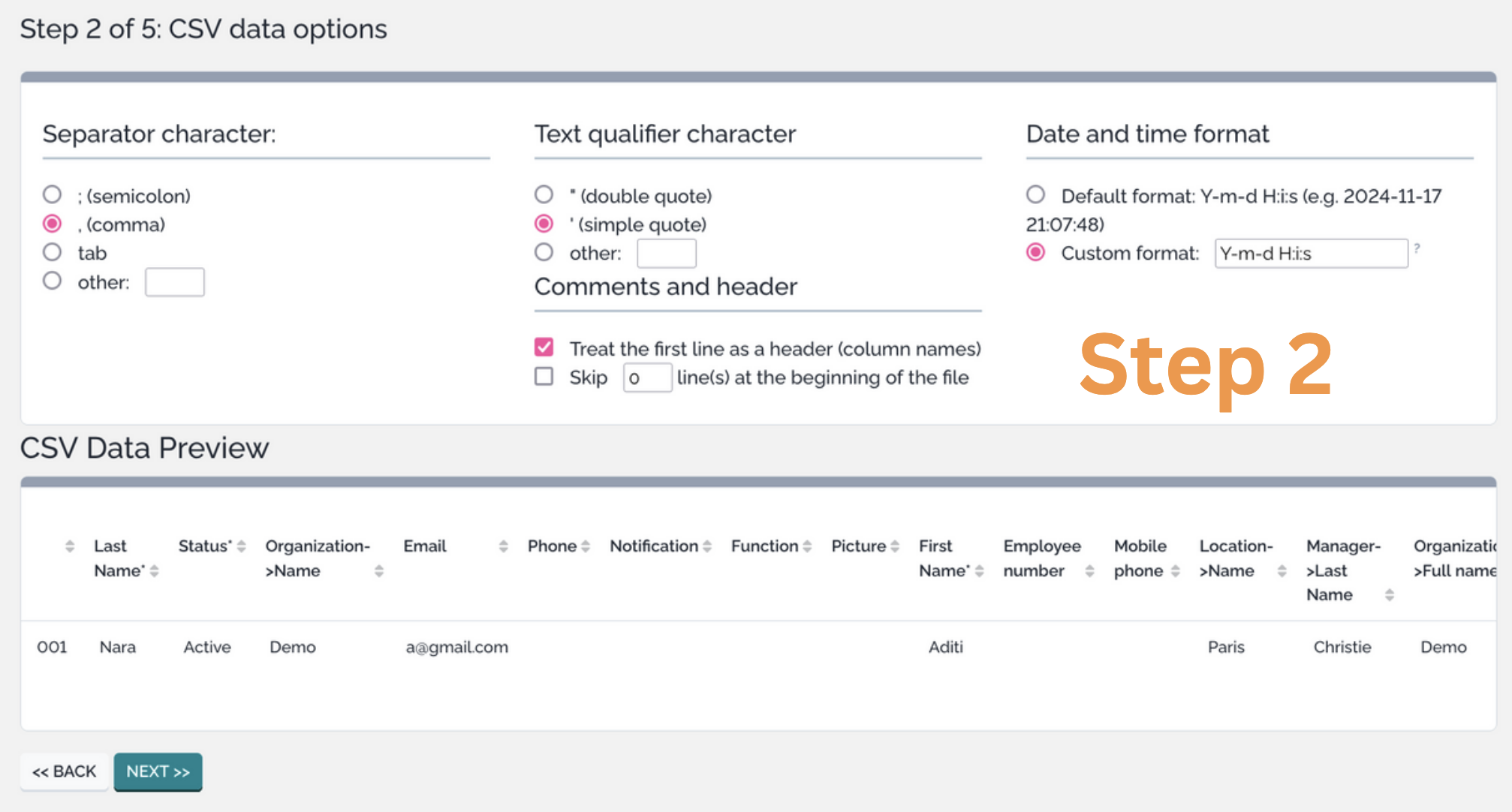

2. Choose CSV data options, like modifying the default separator characters if your CSV is oddly-formatted.

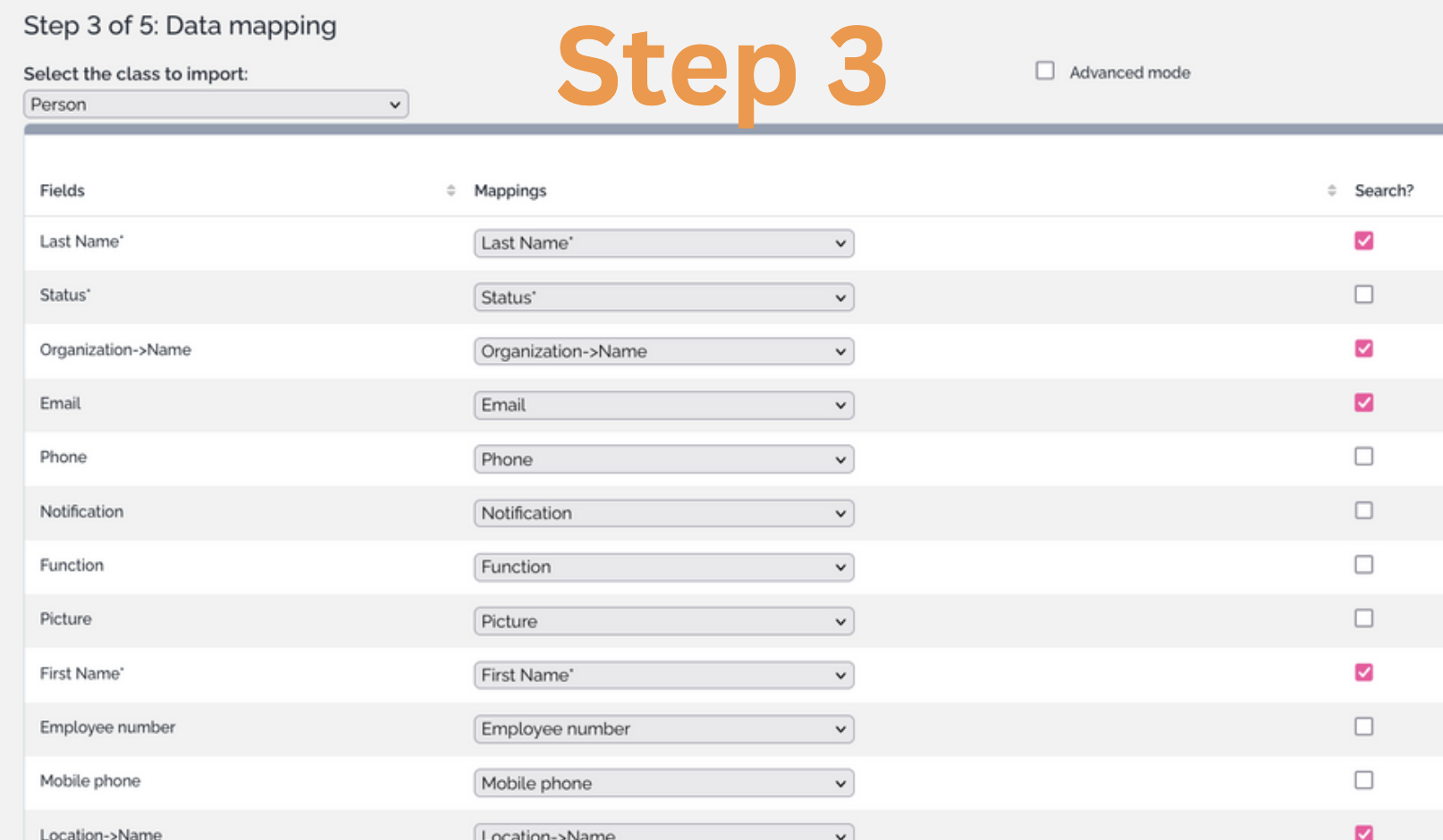

3. Data mapping, which allows you to choose the type of data that you are importing (whether it’s a new user, model, location, etc.).
4. Import simulation, which shows you a formatted table of what the data you are importing will look like in the database.

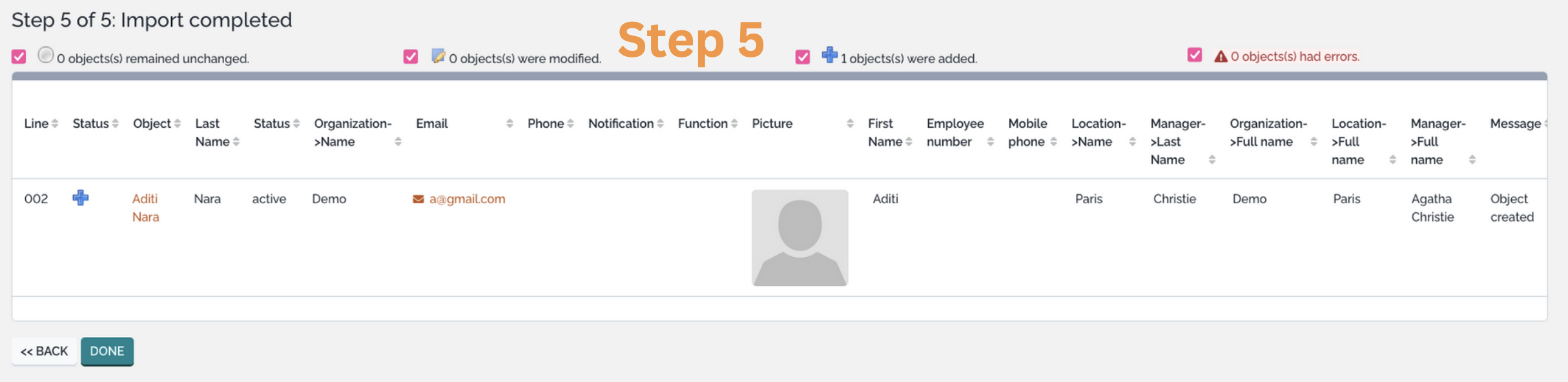

5. Import completion, which actually runs the import and loads new objects into the iTop database.

Attempting to Bypass CSRF Protections

My first assumption was that CVE-2024-31998 would allow us to import any CSV data we wanted, because there was insufficient validation of CSRF tokens (or there were no CSRF tokens present). So, I tried making a POST request to the Import completion page in order to attempt to maliciously create a new user.

However, iTop presented me with the following error: “CSRF token invalid” and refused me access to the fifth step. I looked at the form data in the previous page, and lo and behold, iTop had included an anti-CSRF token embedded within the hidden fields of the form data: transaction_id. This transaction_id token is randomly generated upon every page load between the fourth and fifth steps. It appeared that the CVE was concerned only with the fact that there was no transaction_id to get to the fourth step, Import simulation, although this wasn’t actually adding any user data – it was just allowing the IT admin to view the data they would later upload in the fifth step. I tried multiple things to get around the transaction_id, none of which worked:

• Reusing the same transaction_id for multiple POST requests gave me a “CSRF reused” error.
• Not including a transaction_id in the POST request at all gave me a “CSRF invalid” error.
• Attempting to get the HTTP cookie itself didn’t work because cookies were protected with the “HttpOnly” header, which doesn’t allow this kind of extraction.

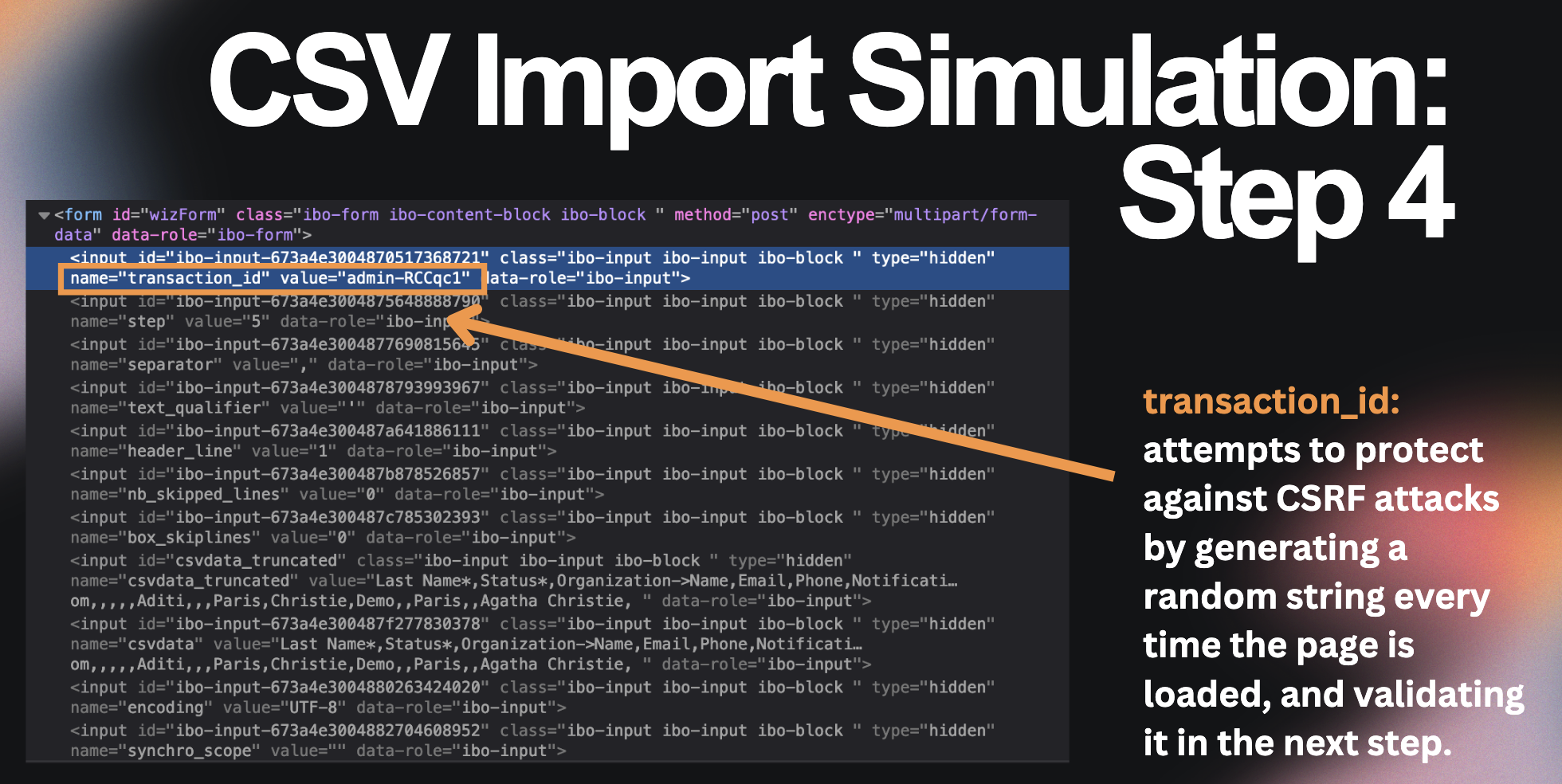

Transaction ID generated in step 4 to protect against XSS.

Stuck, and with only a few days before the project was due, I decided to look into the XSS vulnerability. I tried injecting the following malicious JavaScript into the CSV content: JS. Luckily, the following alert popped up once I loaded the Import simulation, meaning remote code execution by way of JS injection into the CSV worked:

However, this was certainly not enough to present on. I wondered then, was there any way to use this XSS vulnerability to retrieve the transaction_id token? I tried the following malicious JavaScript as a last-ditch effort before I abandoned the CSRF vulnerability for good: <img src=x onerror='alert(document.getElementsByName('transaction_id')[0].value)'>. To my unimaginable excitement, I received the following alert.

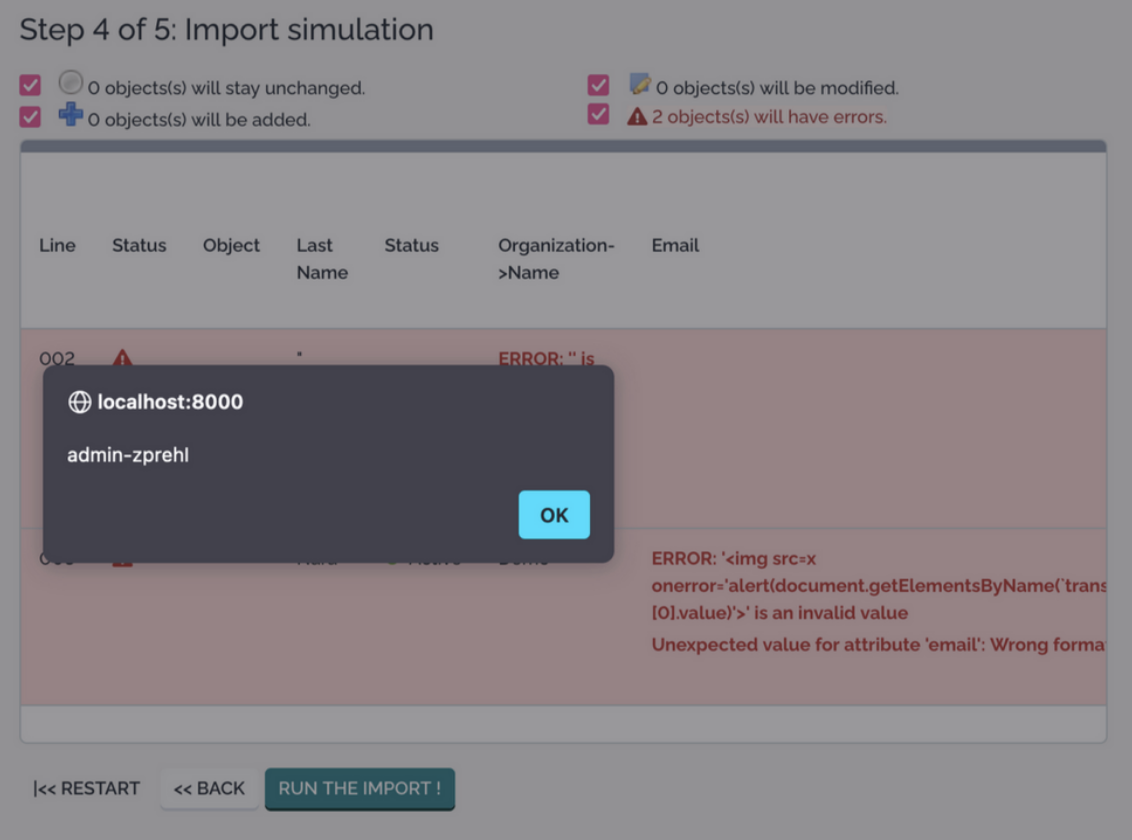

Transaction ID retrieved through CSV injection.

Then, I immediately sent this admin token as a POST request to the fifth step, and I got through. This meant that, in order to create a full exploit, I would need to send two POST requests: one to retrieve the transaction_id token, and another to send the transaction_id with the new CSV I wanted to import. I also needed a victim to somehow submit these requests on the attacker’s behalf.

Final Chained Exploit

Here’s what I came up with:

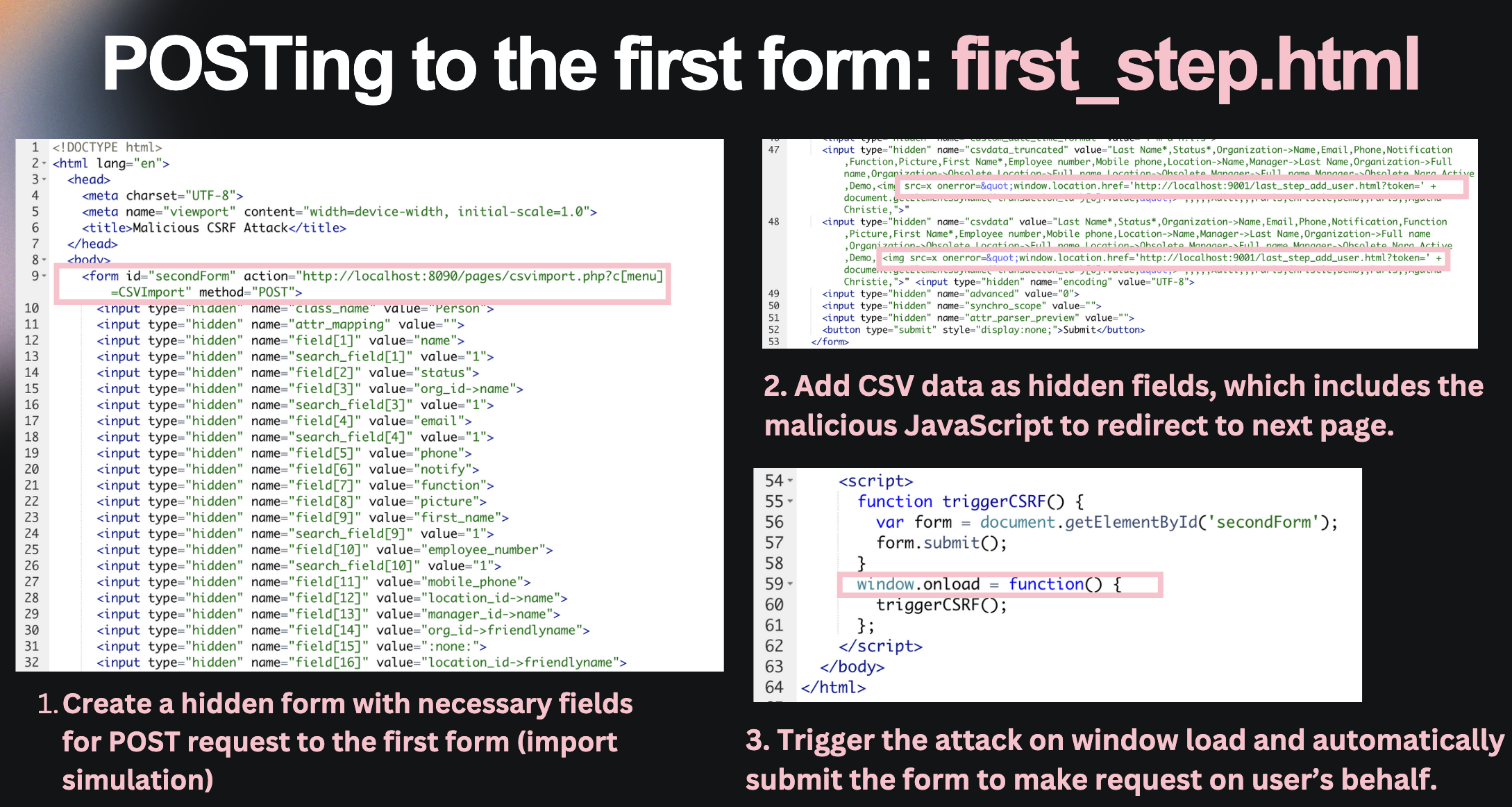

Form 1 retrieves transaction_id

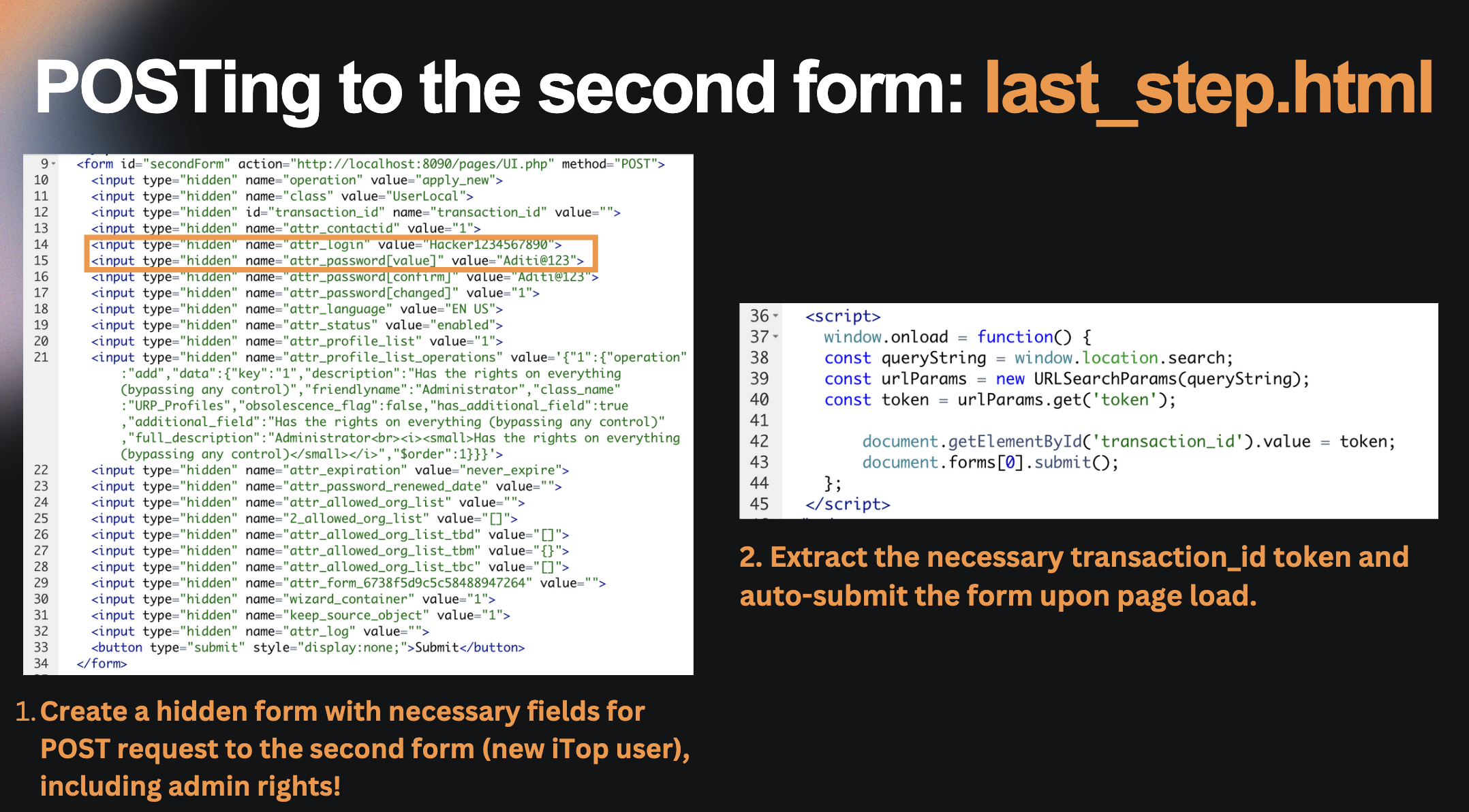

Form 2 sends transaction_id and creates a new admin user.

The first page, first_step.html, injects JavaScript into a CSV to make a POST request to the import simulation page, and retrieves the transaction_id token. This transaction_id is passed along as a URL parameter to the endpoint where last_step.html is hosted. Then, last_step.html extracts the transaction_id token from the query string. The transaction_id is sent to the Import completion step along with a CSV defining a new admin user we want to upload to iTop. Now, we are able to login as admin to the iTop page without having any credentials or knowledge of the victim’s credentials.

Here are some nuances of the exploit:

• We use ‘&\quot;’ instead of quotation marks in our malicious JavaScript here: JS, otherwise iTop will not parse the CSV properly.
• We host these HTML pages on a server and rely on the victim clicking a link that takes them to the first_step.html endpoint, because CSRF relies on the victim being authenticated via their session token.
• The malicious code is executed immediately after the victim loads our webpage because I’ve set everything to occur ‘onLoad’

Neither of the original CVEs said anything about getting through to the actual upload of malicious CSV content, or that an admin user can be maliciously uploaded. Thus, my full exploit is an extension of these existing CVEs that was produced by chaining them together, which shows how simple vulnerabilities can compound into a far larger issue.

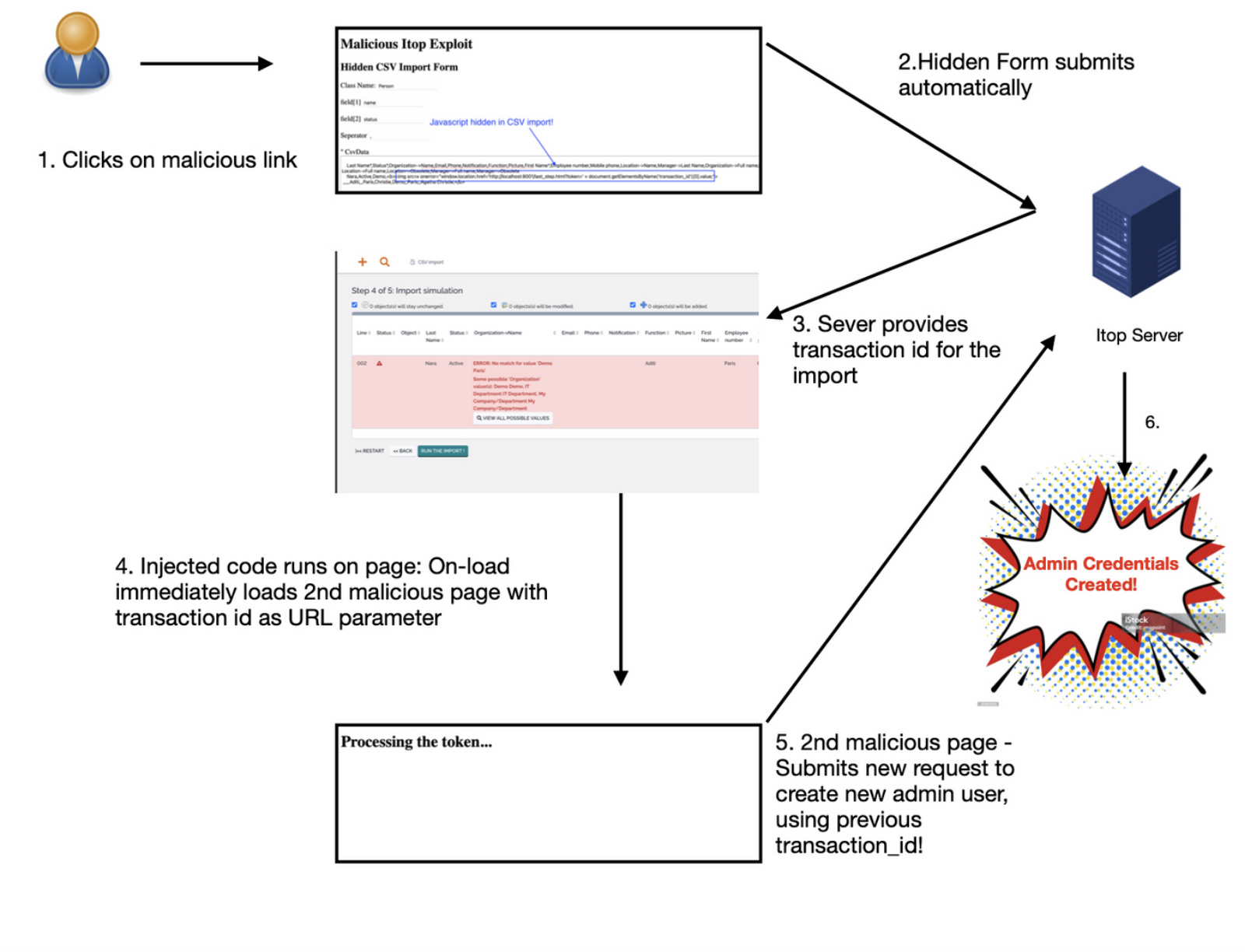

End-to-end exploit.

My First CVE!

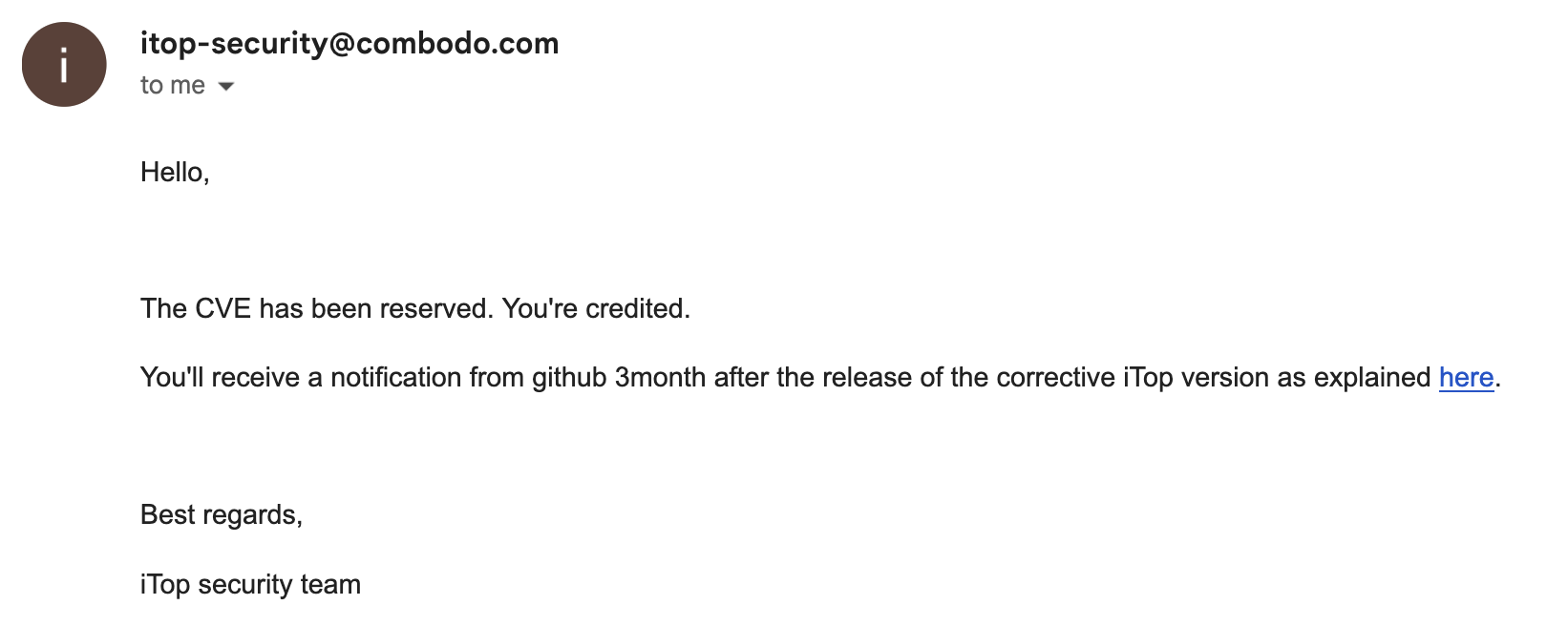

Finally, I decided to test the exploit on the latest version of iTop. Unsurprisingly, I found that the CSRF had been patched. However, I found that the XSS attack actually had not been patched, and I ended up emailing the iTop team. They confirmed that my exploit still worked, and awarded me my first CVE!

Thanks iTop!

For more detailed information, please view our presentation here.
